Property
|
Property |
Data |
|
ID range |
1.0~12.70mm |
|
Wall thickness |
0.008~0.25mm |
|
Shrink ratio |
2:1 And 3:1 |
|
Shrink temperture |
190℃ |
|
Melting Point |
310℃ |
|
Biocompatibility |
ISO 10993 or USP Class VI |
|
Sterilization method |
Ethylene Oxide,Gamma Radiation,Electron Beam Etc |
|
environmentally |
Rohs |
Specifications
|
As Supplied |
Recovered |
||||||||
|
Inside Diameter (D) |
Inside Diameter (d) |
Wall Thickness(W) |
|||||||
|
Minimum |
Maximum |
Minimum |
Maximum |
Normal |
|||||
|
in. |
mm. |
in. |
mm. |
in. |
mm. |
in. |
mm. |
in. |
mm. |
|
0.04 |
1.00 |
0.02 |
0.5 |
0.003 |
0.08 |
0.005 |
0.13 |
0.004 |
0.1 |
|
0.06 |
1.52 |
0.03 |
0.89 |
0.003 |
0.08 |
0.005 |
0.13 |
0.004 |
0.1 |
|
0.1 |
2.54 |
0.05 |
1.27 |
0.003 |
0.08 |
0.005 |
0.13 |
0.004 |
0.1 |
|
0.12 |
3.04 |
0.06 |
1.52 |
0.003 |
0.08 |
0.005 |
0.13 |
0.004 |
0.1 |
|
0.188 |
4.77 |
0.094 |
2.38 |
0.003 |
0.08 |
0.005 |
0.13 |
0.004 |
0.1 |
|
0.25 |
6.35 |
0.125 |
3.17 |
0.003 |
0.08 |
0.005 |
0.13 |
0.004 |
0.1 |
|
0.1 |
2.54 |
0.05 |
1.27 |
0.005 |
0.13 |
0.007 |
0.18 |
0.006 |
0.15 |
|
0.12 |
3.04 |
0.06 |
1.52 |
0.0065 |
0.17 |
0.0095 |
0.24 |
0.008 |
0.2 |
|
0.188 |
4.77 |
0.094 |
2.38 |
0.008 |
0.2 |
0.012 |
0.3 |
0.01 |
0.25 |
|
0.25 |
6.35 |
0.125 |
3.17 |
0.01 |
0.25 |
0.014 |
0.36 |
0.012 |
0.3 |

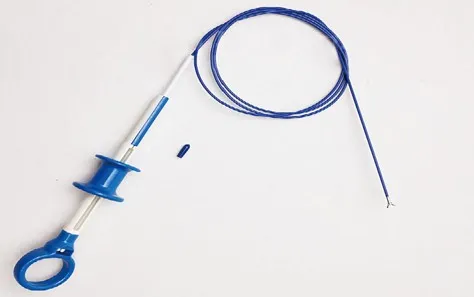

Disposable biopsy forceps
used as outer layer

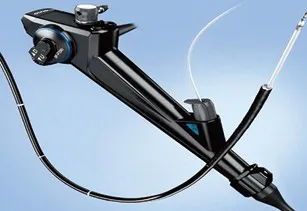

Disposable endoscope forceps
PTFE material is used in inner layer to keep the advantage of PTFE material, At the same time increase the spiral metal mesh intermediate layer and polyurethane elastomer pebax outer layer, Under the premise of ensuring the strength and lubricity of pipe clamp, The utility model is beneficial to increasing the inner diameter of the Disposable endoscope forceps or reducing the outline size of the frontend, Improve the insertion performance of the endoscope.
Property
|
Property |
Data |
|
ID range |
1.0~12.70mm |
|
Wall thickness |
0.008~0.25mm |
|
Shrink ratio |
2:1 And 3:1 |
|
Shrink temperture |
190℃ |
|
Melting Point |
310℃ |
|
Biocompatibility |
ISO 10993 or USP Class VI |
|
Sterilization method |
Ethylene Oxide,Gamma Radiation,Electron Beam Etc |
|
environmentally |
Rohs |
Specifications
|
As Supplied |
Recovered |
||||||||
|
Inside Diameter (D) |
Inside Diameter (d) |
Wall Thickness(W) |
|||||||
|
Minimum |
Maximum |
Minimum |
Maximum |
Normal |
|||||
|
in. |
mm. |
in. |
mm. |
in. |
mm. |
in. |
mm. |
in. |
mm. |
|
0.04 |
1.00 |
0.02 |
0.5 |
0.003 |
0.08 |
0.005 |
0.13 |
0.004 |
0.1 |
|
0.06 |
1.52 |
0.03 |
0.89 |
0.003 |
0.08 |
0.005 |
0.13 |
0.004 |
0.1 |
|
0.1 |
2.54 |
0.05 |
1.27 |
0.003 |
0.08 |
0.005 |
0.13 |
0.004 |
0.1 |
|
0.12 |
3.04 |
0.06 |
1.52 |
0.003 |
0.08 |
0.005 |
0.13 |
0.004 |
0.1 |
|
0.188 |
4.77 |
0.094 |
2.38 |
0.003 |
0.08 |
0.005 |
0.13 |
0.004 |
0.1 |
|
0.25 |
6.35 |
0.125 |
3.17 |
0.003 |
0.08 |
0.005 |
0.13 |
0.004 |
0.1 |
|
0.1 |
2.54 |
0.05 |
1.27 |
0.005 |
0.13 |
0.007 |
0.18 |
0.006 |
0.15 |
|
0.12 |
3.04 |
0.06 |
1.52 |
0.0065 |
0.17 |
0.0095 |
0.24 |
0.008 |
0.2 |
|
0.188 |
4.77 |
0.094 |
2.38 |
0.008 |
0.2 |
0.012 |
0.3 |
0.01 |
0.25 |
|
0.25 |
6.35 |
0.125 |
3.17 |
0.01 |
0.25 |
0.014 |
0.36 |
0.012 |
0.3 |
Disposable biopsy forceps
used as outer layer
Disposable endoscope forceps
PTFE material is used in inner layer to keep the advantage of PTFE material, At the same time increase the spiral metal mesh intermediate layer and polyurethane elastomer pebax outer layer, Under the premise of ensuring the strength and lubricity of pipe clamp, The utility model is beneficial to increasing the inner diameter of the Disposable endoscope forceps or reducing the outline size of the frontend, Improve the insertion performance of the endoscope.
