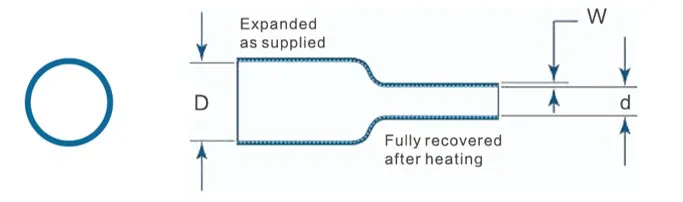

Standard Sizes

As Supplied

Recovered

Inside Diameter Minimum(D)

Inside Diameter Maximum(d)

Wall Thickness(in.,mm.)(W)

Size

in.

mm.

in.

mm.

Minimum

Maximum

Normal

3/64

0.046

1.17

0.023

0.58

0.008

0.2

0.12

0.31

0.01

0.25

1/16

0.063

1.6

0.031

0.79

0.008

0.2

0.12

0.31

0.01

0.25

3/32

0.093

2.36

0.046

1.17

0.009

0.2

0.12

0.31

0.01

0.25

1/8

0.125

3.18

0.062

1.58

0.009

0.2

0.12

0.31

0.01

0.25

3/16

0.187

4.75

0.093

2.36

0.009

0.2

0.12

0.31

0.01

0.25

1/4

0.25

6.35

0.125

3.18

0.011

0.28

0.15

0.38

0.013

0.33

3/8

0.375

9.53

0.187

4.75

0.011

0.28

0.15

0.38

0.013

0.33

1/2

0.5

12.7

0.25

6.35

0.011

0.28

0.15

0.38

0.013

0.33

3/4

0.75

19.05

0.375

9.53

0.014

0.36

0.2

0.51

0.017

0.43

150℃ Flexible Properties Table

Physical

Unit

Requirement

Test Method

Longitudinal change*

percent

+0,-10 maximum

ASTM D 2671

Concentricity as supplied*

percent

70 minimum

ASTM D 2671

Tensile strength*

psi(MPa)

4000 minimum(27.6)

 ASTM D 2671,
 20/minute"

Ultimate elongation*

percent

300 minimum

Secant modulus*(expanded)

psi(MPa)

50,000 maximum(345)

ASTM D 2671

Heat resistance
168 hours at 250 :5℃
(482°F)
Followed by test for:

Ultimate elongation

ASTM D 2671,
  20/minute"

percent

250 minimum

Electrical
Dielectric strength

volts/mil
(volts/mm)

500 minimum(19.680)

ASTM D 2671

Dielectric withstand
3000V,60Hz

sec

60 minimum

ASTM D 2671

Chemical
Fluid resistance
24 hours at 23 :3℃(77 :5°F)
   Isopropyl alcohol
   5%saline solution
   Disinfectant
   Followed by tests for:

Dielectric strength

Tensile strength

ASTM D 2671

volts/mil
(volts/mm)

400 minimum(15.760)

psi(MPa)

3500 minimum (24.1)

ASTM D 2671

175℃ Semi-rigid Properties Table

Physical

 Unit

Requirement

Test Method

Longitudinal change*

percent

+0,-10 maximum

ASTM D 2671

Concentricity as supplied*

percent

70 minimum

ASTM D 2671

Tensile strength*

psi(MPa)

5000 minimum(34.5)

ASTM D 2671,
20/minute"

Ultimate elongation*

percent

150 minimum

Secant modulus*(expanded)

psi(MPa)

1×10⁵minimum(690)

ASTM D 2671

Heat resistance
168 hours at 250 :5℃
(482°F)

Followed by test for:
UlItimate elongation

ASTM D 2671,
20/minute"

percent

50 minimum

Electrical
Dielectric strength
Sizes 3/64 through 1/2
Sizes 3/4 through 2

volts/mil
(volts/mm)

800 minimum
(31.500)600
minimum(23.600)

ASTM D 2671

Dielectric withstand
3000V,60Hz

sec

60 minimum

ASTM D 2671

Chemical
Fluid resistance
24 hours at 23 :3℃(73:5°F)
   Isopropyl alcohol
   5%saline solution
   Disinfectant

Followed by tests for:
Dielectric strength
   Sizes 3/64 through 1/2
   Sizes 3/4 through 2

Tensile strength

ASTM D 2671

volts/mil
(volts/mm)

700 minimum
(27.600)500
minimum(19.700)

psi(MPa)

5000 minimum(34.5)

ASTM D 2671,
2/minute"
