Items |
Performance Indicators |
Typical Value |
|
Tensile strength |
ASTM D638 |
≧12MPa |
|
Tensile strength after aging |
120℃ x 168 hrs |
≧10MPa |
|
Elongation at break |
ASTM D638 |
≧400% |
|
Elongation at break after aging |
120℃ x 168 hrs |
≧350% |
|
Insulation Breakdown voltage |
IEC 243 |
≧20Kvmm |
|
Volume resistivity |
IEC 250 |
≧1014Ω •㎝ |
|

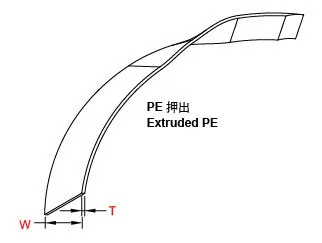

Specifications |
Standard width |
Standard thickness |
Packaged Length |
|
|
w mm |
Tmm |
m |
|
SJD-0825 SJD-0850 SJD-08100 SJD-1025 SJD-1050 SJD-10100 |
25 50 100 25 50 100 |
0.8 ± 0.1 0.8 ± 0.1 0.8 ± 0.1 1.0 ± 0.1 1.0 ± 0.1 1.0 ± 0.1 |
5 or 10 5 or 10 5 or 10 5 or 10 5 or 10 5 or 10 |
|
Items |
Performance Indicators |
Typical Value |
|
Tensile strength |
ASTM D638 |
≧12MPa |
|
Tensile strength after aging |
120℃ x 168 hrs |
≧10MPa |
|
Elongation at break |
ASTM D638 |
≧400% |
|
Elongation at break after aging |
120℃ x 168 hrs |
≧350% |
|
Insulation Breakdown voltage |
IEC 243 |
≧20Kvmm |
|
Volume resistivity |
IEC 250 |
≧1014Ω •㎝ |
|
Specifications |
Standard width |
Standard thickness |
Packaged Length |
|
|
w mm |
Tmm |
m |
|
SJD-0825 SJD-0850 SJD-08100 SJD-1025 SJD-1050 SJD-10100 |
25 50 100 25 50 100 |
0.8 ± 0.1 0.8 ± 0.1 0.8 ± 0.1 1.0 ± 0.1 1.0 ± 0.1 1.0 ± 0.1 |
5 or 10 5 or 10 5 or 10 5 or 10 5 or 10 5 or 10 |
